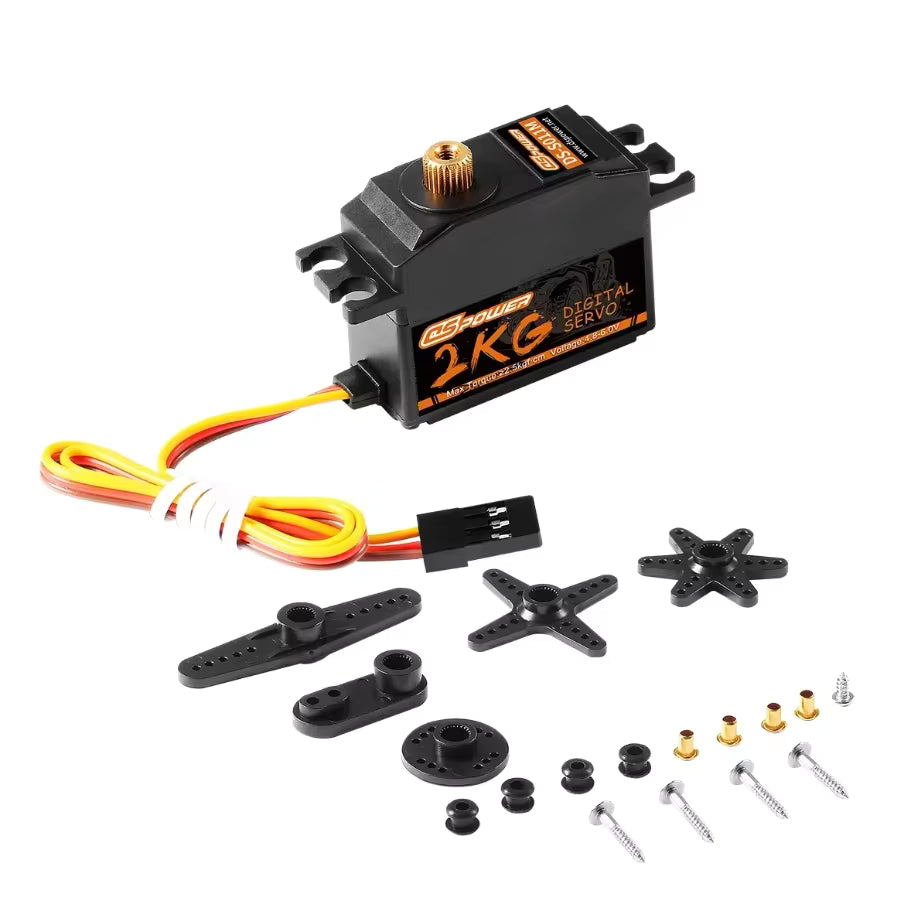

DSPower 2KG Low Servo 1/12

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

Specifications:

Operating Voltage : 4.8~6.0V DC

Max. Torque : 4.8V≥5.0kgf·cm ; 6.0V≥6.5kgf·cm

No Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°

Stall Current:4.8V ≦1900mA;6.0V≦2500mA

Consumption Current* (No Load):4.8V ≦120mA;6.0V≦130mA

Max. Operating Travel Angle:180° ±10° (500~2500 us)

Dead Band Width: ≤ 1us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Copper gear

Weight: 21g

Size: 42.3 × 15.4 × 32.1mm

Length of Connector cable: JST2.0 5wire/JR2.54 3 wire 250MM±5mm (exposed without plug)
